Bio digesters

Our smallest Stovac-series can be installed in a compact enclosure with only a 7-10m2 footprint. The system is easy to integrate in both existing and new plants. The units are modular and scalable for waste streams from 30 Kg/day/unit up to 1000kg/day/unit.
Our  Stovac K-series come installed  from factory in 40Ft HighCube Container units or can be integrated in both existing and new plants.
The units are modular and scalable for wastestreams from 3To /day/unit up to 10To/day/unit.

Modular Bio digesters  range 30- 1000Kg/day

ST-32

• Capacity 30-50kg per day (24 hr)
• Biogas yield 15-20 m3 per day (24 hr)
• Fertilizer 50ltr per day (24 hr)
• Dimensions 240 x 150 x 170 cm (LxWxH)
• Body Stainless steel
• Input Manual
• Loading Max 10-15 kg at a time

ST-126

• Food waste 80-200 kg per day (24 hr)
• Biogas yield 60-120 m3 per day (24 hr)
• Fertilizer 200 ltr per day
• Dimensions 360 x 201 x 236 cm (LxWxH)
• Body Stainless steel
• Input Manual
• Loading Max 25-50 kg at a time

 ST-252

• Food waste 300-400 kg per day (24 hr)
• Biogas yield 120-240 m3 per day (24 hr)
• Fertilizer 400 ltr per day
• Dimensions 40 Ft Reefer Container(s)
• Body Stainless steel
• Input : various solutions
• Loading Max Scalable

ST-378

• Food waste 500-600 kg per day (24 hr)
• Biogas yield 200-360 m3 per day (24 hr)
• Fertilizer 600 ltr per day
• Dimensions 40 Ft Reefer Container(s)
• Body Stainless steel
• Input : various solutions
• Loading Max Scalable

ST-630

• Food waste 800-1000 kg per day (24 hr)
• Biogas yield 320-600 M3 per day (24 hr)
• Fertilizer 1 m3 per day
• Dimensions 40 Ft Reefer Container(s)
• Body Stainless steel
• Input : various solutions
• Loading Max Scalable

Kingsize Modular Bio digester range 3To- 10To/day

ST-6.3K coming soon

• Food waste 3To- 10To per day (24 hr)
• Biogas yield 1200-6000 M3 per day (24 hr)
• Fertilizer 10 m3 per day
• Dimensions 40 Ft Reefer Container(s)
• Body Stainless steel
• Input : various solutions
• Loading Max Scalable

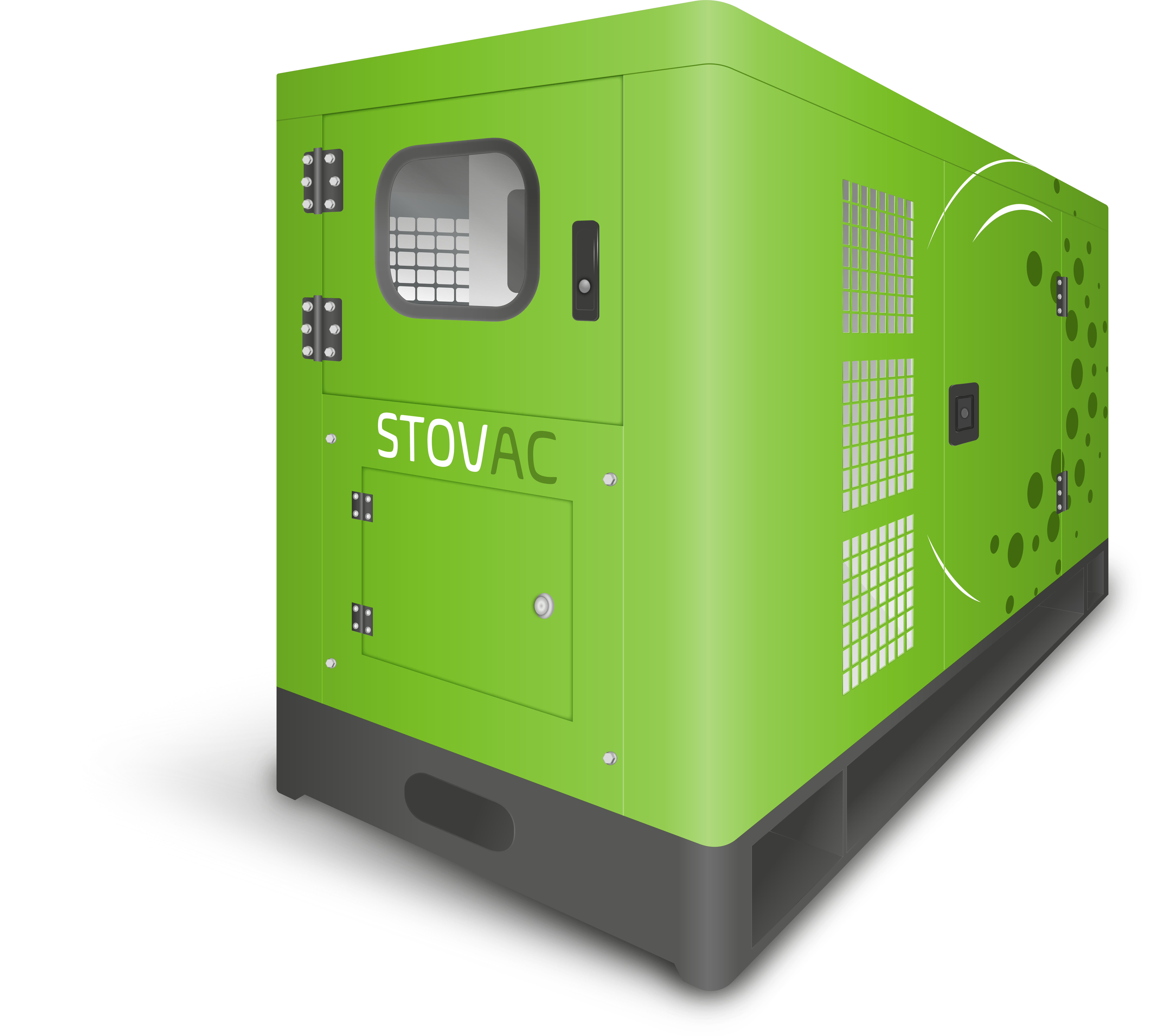

Generators

AC series adopts gasengines from Japanese Yanmar technology.
It has the characteristics of sufficient power, low noise, small volume and good durability.
Engine’s gas mixture system, ignition and control system are independently matched and optimized by AC, which are reliable and durable.

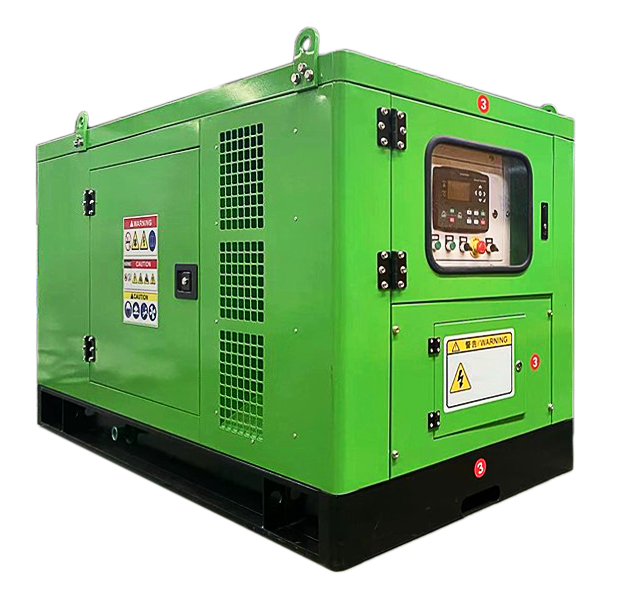

AC-10

• Rated Power output 10/12.5 kW/kVA
• Rated Voltage 230/400 V
• Rated Frequency 50/60 Hz (EU/US)
• Stable Voltage Regulation Rate ≤±1%
• Overall Dimension 205 x 110 x 155 cm (LxWxH)
• Net Weight 680 kg
• Engine Specifications
• Type Inline, 4 strokes
• Cylinder Number 3
• Rated engine Speed 1500/1800 r/min
• Fuel : Biogas only
• Multi-function LCD display
• ECU single cylinder independent ignition
• American Governor electronic controlled
• Brushless Generator
• AVR  (Automatic voltage regulation)
• Operating modes : grid connected/manual/self starting/island

AC-30

• Rated Power 30/37.5 kW/kVA
• Rated Voltage 230/400 V
• Rated Frequency 50/60 Hz (EU/US)
• Stable Voltage Regulation Rate ≤±1%
• Overall Dimension 173 x 83 x 130 cm (LxWxH)
• Net Weight  650 kg
• Engine Specifications
• Type Inline, 4 strokes, ecu, natural aspiration
• Cylinder Number 4
• Rated Speed 1500/1800 r/min
• Fuel  Biogas Only
• Multi-function LCD display
• ECU single cylinder independent ignition
• American Governor electronic controlled

• Brushless Generator

• AVR  (Automatic voltage regulation)

• Operating modes : grid connected/manual/self starting/island

AC-50

• Rated Power 50/62.5 kW/kVA

• Rated Voltage 230/400 V

• Rated Frequency 50/60 Hz (EU/US)

• Stable Voltage Regulation Rate ≤±1%

• Overall Dimension 240 x 96 x 175 cm (LxWxH)

• Net Weight 1350 kg

• Engine Specifications

• Type Inline, 4 strokes, ecu, natural aspiration

• Cylinder Number 6

• Rated Speed 1500/1800 r/min

• Fuel  Biogas Only

• Multi-function LCD display

• ECU single cylinder independent ignition

• American Governor electronic controlled

• Brushless Generator

• AVR  (Automatic voltage regulation)

• Operating modes : grid connected/manual/self starting/island

AC-90

Coming soon
